Fiber Optic Line Field Service Trainer (Fiber Optic-5000)

FEATURES :
  • Fiber optic line field service-5000 was developed to implement 5 functions such as OTDR, CWDM, Laser Soruce, Power Meter, Fault Locator in a single device.
  • Fiber optic line field service-5000 is the equipment for optical line field service.
  • In optical line field service, OTDR, CWDM, Laser Source, Power Meter, Fault Locator is mainly used.
  • Fiber optic line field service-5000 was developed to implement 5 functions such as OTDR, CWDM, Laser Soruce, Power Meter, Fault Locator in a single device.
  • Fiber optic line field service-5000 was developed for easy-to-carry size hardware. In particular, it was developed for fast speed in initial working stage through the short boot & run time.
  • By easy operation, untrained user can easily operate the system.
  • Fiber optic-5000 application software program, which is installed to all of Android terminals, is provided.
  • Fiber optic-5000 manual book is faithful to learn about the theory on OTDR, CWDM, Laser Source, Power Meter, Fault Locator. There are the detailed explanation of theory, formula,,, etc for OTDR, CWDM, Laser Source, Power Meter, Fault Locator.
Categories: ,

Description

TRAINING CONTENTS :
INTRODUCTION OF FIBER OPTIC-5000

  • Notice before operating
  • Breakdown of product components
  • Specification for Exterior and basic operation keys
  • Getting started.
  • Setting Current time
  • Mode (Functions and Words)
  • Mode : OTDR
  • Mode : CWDM Analyzer
  • Mode : LD Sources
  • Mode : Optical Power Meter
  • Mode : Visible Laser

CONNECTION STATUS OF FIBER OPTIC-5000

  • OTDR measurement
  • CWDM measurement
  • Power Meter measurement
  • Visible Laser measurement

QUICK OPERATING GUIDE OF FIBER OPTIC-5000

  • Develop Environment
  • Product Components
  • Basic manipulation
  • Principal Details
  • Major function – OTDR
  • Major function – CWDM Analyzer
  • Major function – Visual fault locator
  • Major function – Loss Measurement

THEORY OF FIBER OPTIC-5000

  • OTDR
  • CWDM
  • Power Meter
  • LD Source
  • Visible Laser

COMPONENTS :
  • Hardware of Fiber optic line field service trainer : 1 Set
  • Test cable dummy : 1KM
  • USB Cable : 1EA
  • FC Adapter Head for replacement : 3EA
  • Charging adapter : 1EA
  • Software Program CD (Android Terminals Application S/W) : 1EA
  • Car Charging Jack : 1EA
FUNCTIONS :
  • OTDR
  • CWDM Analyzer (2 Sets of Hardware is Needed)
  • Loss Measurement (Laser Source & Optical Power Meter)
  • Visual Fault Locator

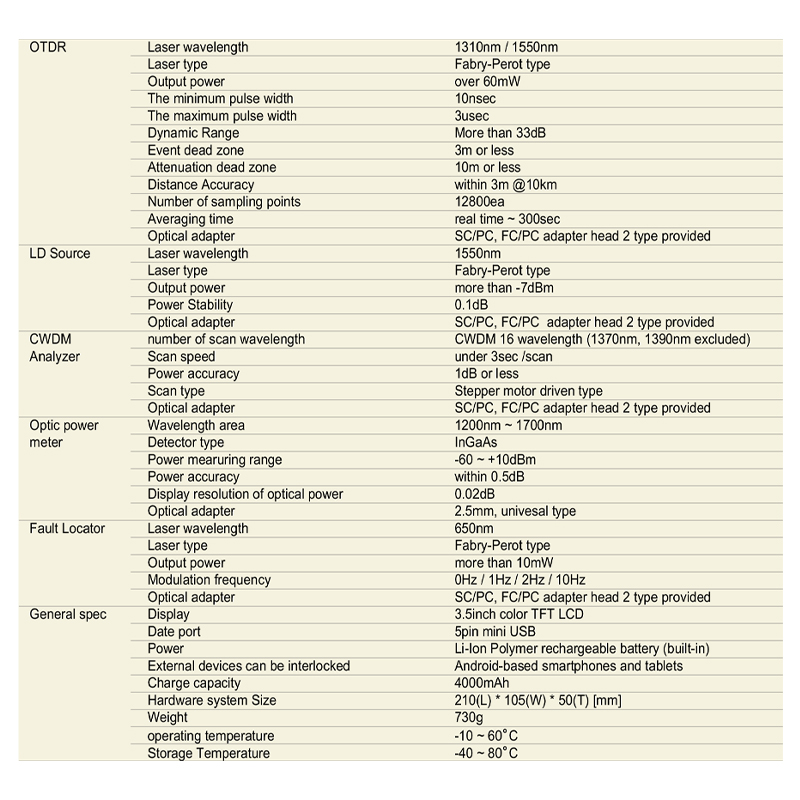

SPECIFICATION

DOCUMENTS

Fiber Optic-5000
