WST-25 Automatic Control Trainer (Module Type)

ACCESSORY :
  • Experiment Manual : 1 Copy
  • Communication Cable (USB) : 1EA
  • Test Lead (Banana Plug) : 1 Unit
  • Power Cable : 1EA

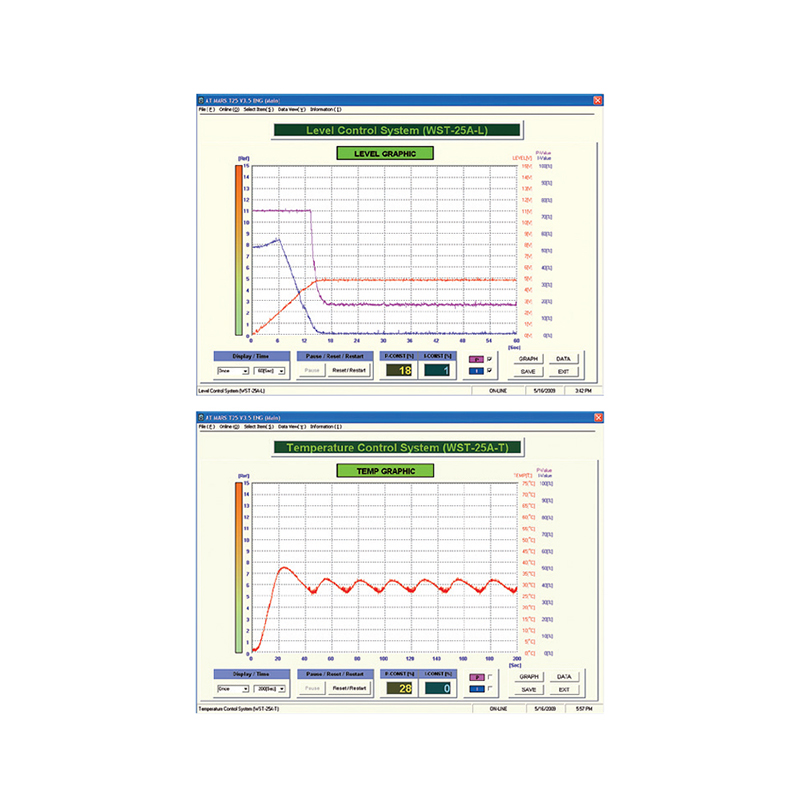

  • Monitoring Software : 1 Copy
  • Dust Cover : 1 Set

OPTION

  • Function Generator : 1EA (1 MHz & Output 3V)

Description

EXPERIMENT :
  • Control with Two position controller
  • Control which has two position controller and delayed feedback
  • Control with two position controller and flexible delayed
  • Control with proportional controller
  • P·I and P·I·D Controller
  • P·I·D Control with Parallel and Incremental structure
  • P·I Control of control system with delay element
  • Temperature control with 2-position controller
  • Temperature control with P·I·D controller
  • Oscillating frequency control with P·I·D controller
  • Generator voltage control with generator oscillating frequency control

SPECIFICATION

  • Main Voltage : 1 Phase 220 ~ 240V / 50/60Hz
  • Working Table & Board – Frame : 3 step
  • Module Storage Cabinet : 2EA

EXPERIMENT MODULE

  • WST-25-01 : Set Point Adjust Module
  • WST-25-03 : Proportional Controller Module
  • WST-25-05 : Differential Controller Module
  • WST-25-07 : Voltage Indicator Module
  • WST-25-09 : Time Delay Module
  • WST-25-11 : Phase Control Rectifier Module
  • WST-25-13 : Voltage Divider Module
  • WST-25-15 : Power Supply Module
  • WST-25-17 : Transducer Module
  • WST-25-19 : Matching Amplifier Module
  • WST-25-M1 : DC Voltmeter Module
  • WST-25-M3 : AC Voltmeter Module
  • WST-25-02 : Comparator Module
  • WST-25-04 : Integrator Controller Module
  • WST-25-06 : Summing Point Module
  • WST-25-08 : Two Position Controller Module
  • WST-25-10 : Phase Delay Module
  • WST-25-12 : Generator Load Module
  • WST-25-14 : DC Power Supply Module
  • WST-25-16 : Interface Module
  • WST-25-18 : Motor & Generator Control Module
  • WST-25-M2 : DC Ammeter Module
  • WST-25-M4 : AC Ammeter Module

DOCUMENTS

WST-25 Automatic Control Trainer (Module Type)
