Basic PLD Trainer (MBPT 1000)

FUNCTIONS :
  • User can develop project with various sensor modules and applications.
  • Automatic equipment status checking function.
  • Easy monitoring function by supporting USB 2.0
  • Users can connect and control external equipment through extended GPIO pin.
Categories: ,

Description

FEATURES :
  • Supports PLD developing environment based on Xilinx ISE (Free of charge).
  • Supports PLD developing environments based on Altera Quartus (Free of charge).
  • East to maintain as various I/O practices are modulized.
  • Provides compiling practice without purchasing additional compiler.
FUNCTIONS :
  • 8bit Microprocessor Training & Practice System
  • AVR Architecture & Firmware Training & Practice
  • Practice of Initialization Code Analysis using the AVR compiler
  • Coding Practice using Experimental C Source
  • Practice using Various Peripheral Devices
COMPONENTS :
  • Main Board : 1ea
  • 2 Type CPLD Board (Xilinx, Altera) : 1 set
  • 10 Type I/Os 1 set wrapping wire : 1ea
  • USB cable : 1 set
  • RS-232C cable : 1ea
  • DC Adapter : 1ea
  • Carry bag : 1ea
  • Wrapping wire : 1ea
  • Nipper : 1ea
  • Textbook : 1ea

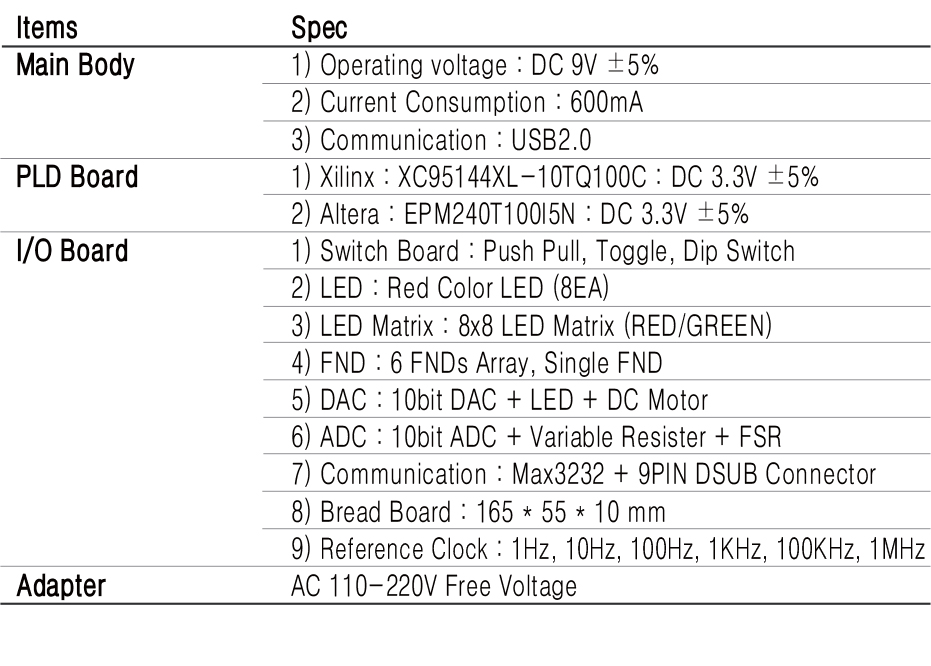

SPECIFICATIONS

DOCUMENTS
