Pneumatic-5000

Pneumatic-5000 drives an air compressor with a motor or an engine to convert mechanical energy to air pressure energy and controls the air pressure to do various kinds of mechanical work by supplying the compressed air to actuators such as pneumatic cylinders or pneumatic motors.

Pneumatic actuators are widely used for linear motions such as conveyance, clamping, assembly, etc. of work pieces in factory automation. Recently, a variety of modular products have been developed and widely used over all industries, reducing time and labors required for creating circuit design and writing work.

Description

FEATURES :

Pneumatic-5000 is composed of various modules to provide theoretical understanding and practices of the following:

  • Single and double acting cylinder control
  • Practice of AND, OR, NOT and NAND logic circuitry
  • Practice of elementary circuits such as self-holding circuit, timer circuit, priority circuit (interlock), counter circuit, round-trip circuit of double-acting cylinder, etc.
  • Practice of application circuits such as continuous round trip, intermittent/continuous cycle circuit, etc.
  • Practice of two-cylinder control circuit.
COMPONENTS :
  • Pneumatic-5000 Hardware platform : 1 set
  • Air Service Unit : 1ea
  • Air dispenser : 1ea
  • Double-acting cylinder : 2ea
  • One-way flow control valve : 2ea
  • Single-acting cylinder : 1ea
  • Air hose : 1 set
  • Quick exhaust valve : 1ea
  • T-type connector : 10ea
  • 3/2 way pneumatically actuated valve: 1ea
  • 5/2 way pneumatically actuated valve: 2ea
  • 5/2 way push button valve : 1ea
  • TIME DELAY valve : 1ea
  • OR valve : 2ea
  • AND valve : 2ea
  • 3/2 way push button valve : 2ea
  • 3/2 way manual change-over valve : 2ea
  • 3/2 way roller valve : 4ea
  • 4/3 way manual change-over valve : 1ea
  • Proximity switch-mounted double-acting cylinder : 1ea
  • 3/2 way single-acting solenoid valve : 2ea
  • 5/2 way single-acting solenoid valve : 2ea
  • 5/2 way double-acting solenoid valve : 2ea
  • 5/3 way double-acting solenoid valve : 1ea
  • Capacitive Proximity sensor : 1ea
  • High frequency Oscillation Proximity sensor (PNP) : 1ea
  • Electrical Limit switch (Adjustable roller lever type) : 4ea
  • 3 pairs really unit (SK-AType) : 2ea
  • Signal Input Switch unit (SK-AType) : 1ea
  • Signal Input Switch unit (SK-BType) : 1ea
  • Emergency Stop Switch unit : 1ea
  • Lamp, buzzer unit : 1ea
  • TIME Relay unit : 1ea
  • Digital Counter unit : 1ea
  • Electrical distribution unit : 1ea
  • Connection cable : 1 set
  • Power supply : 1ea
  • Manual book : 1 book
  • Tool box with tools / Hose Cutter : each 1 set
  • Spanner, +, – type screwdriver, tape : 1 set
  • Program CD FOR project training : 1 CD

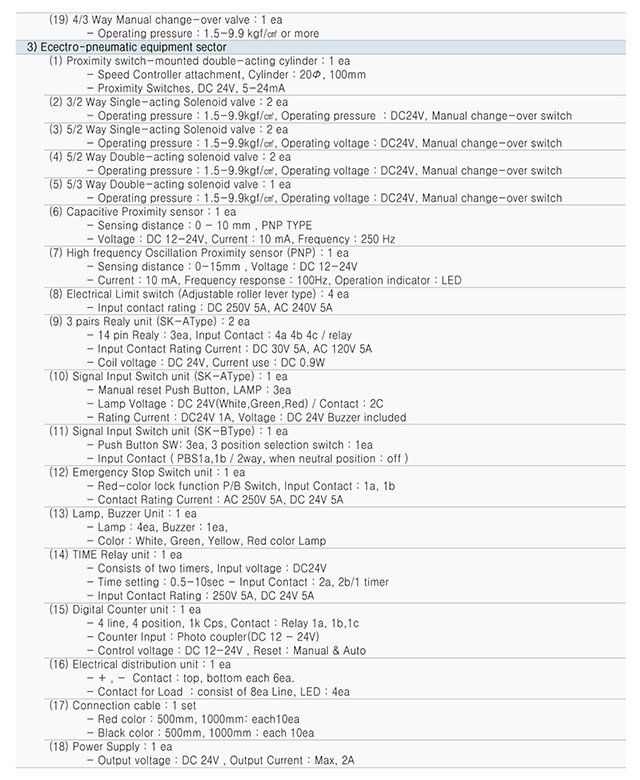

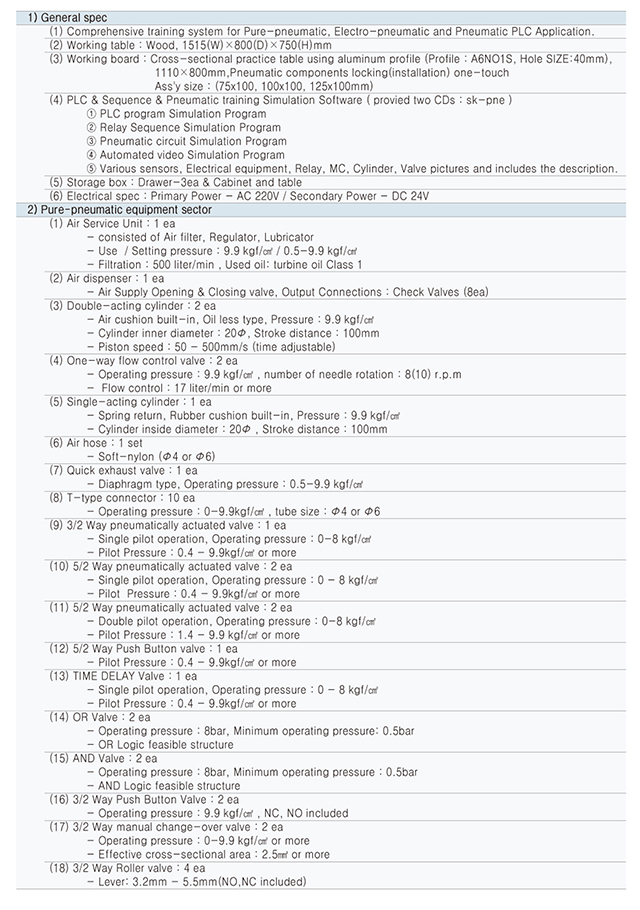

SPECIFICATION
