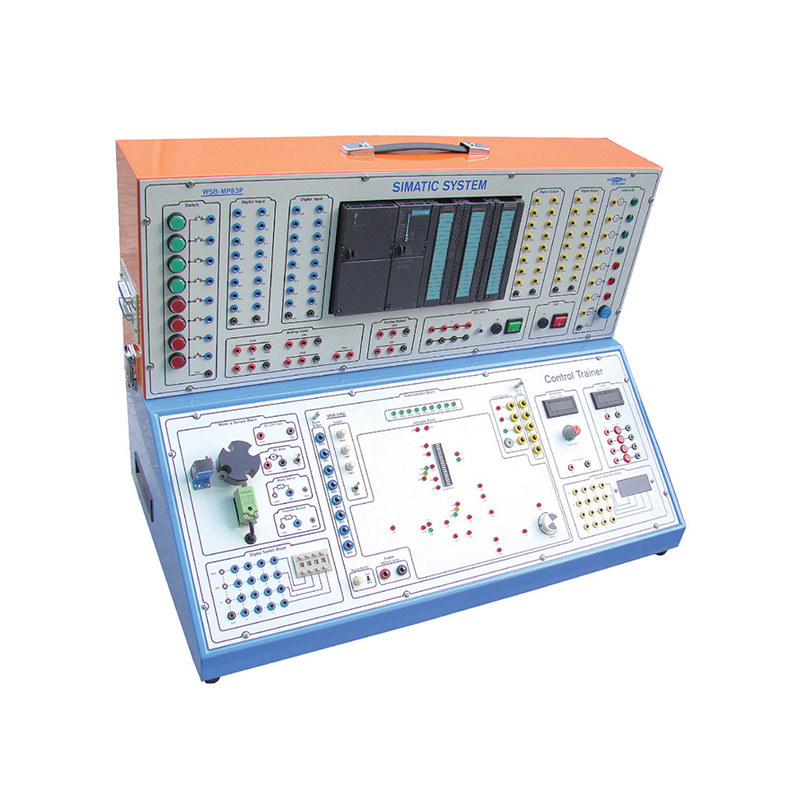

WSB-80P Series PLC Trainer (SIEMENS SIMATIC STEP7-300)

Option

  • Demonstration Unit : 1 Set

Description

EXPERIMENT :
  • Basic Commands (Contact Connection in Series & Parallel / Coil / MCS & MCSCLR)
  • Self-Holding Circuit
  • Transition-Sensing Coils
  • Quiz Circuit
  • Electric Motor and Pulse Sensor
ACCESSORY :
  • Experiment Manual : 1 Copy
  • Power Cable : 1EA
  • Dust Cover : 1EA
  • Communication Cable(LAN Cable) : 1EA
  • Test Lead (Banana Plug) : 1 Unit
  • Program Tool : 1 Copy

SPECIFICATION

MAIN CONTROLLER

  • Main Voltage : 1 Phase 220~240V / 50~60Hz
  • DC Output : DC 24V
  • Input Switch & Output Lamp & Buzzer
  • Proximity & Photo Sensor
  • DC Motor
  • Digital Switch (0000 ~ 9999) & Seven Segment (0000 ~ 9999)

P.L.C UNIT (SIEMENS-S7 300 SERIES)

  • CPU Module (S7-314C-2PN/DP)
  • Power Module
  • Base
  • Digital Input : 32 Points – Source Type
  • Digital Output : 32 Points – TR Source Type
