RFID 1356

FEATURES :
  • RFID-1356 Kit is the best developer kit to characterize and understand the equipment of RFID 13.56MHz band. The kit is designed for use of university students, research institutions.
  • It is configured to be compatible with Arduino. User can control RFID reader, LCD, LED, and Buzzer under Arduino board environment or by connecting directly to PC.
  • RFID-1356 kit is high performance learning and training system for understanding basics, working and application of RFID (Radio Frequency Identification) in the school or laboratories.
  • It comprises of Contactless RFID Reader, 5 Contactless RFID Cards, Host program, Firmware source and Texbook for lectures. Using this trainer, a professor can teach students the RFID technologies including Anti-collision algorithm.
Categories: ,

Description

TRAINING  BOOK NO 1 (RFID-1356 GUIDE) :
OPERATIONAL MANUAL FOR RFID 13.56MHz KIT

  • Notes
  • Components
  • Assemble and connect the parts.
  • Install Demo program and start the operation
  • Explanation on ARDUINO
  • Step-motor control

ISO15693 AIR INTERFACE PROTOCOL FUNCTION LIBRARY

  • Introduction
  • Application Integration
  • Programming Interface
  • Appendix

RFID 13.56MHz API DEVELOPMENT GUIDE FOR RFID READER

  • Summarize
  • Layer
  • Directory navigation
  • API calling step
  • Connection String
  • Description of common API calls for the rfidlib_reader.dll
  • Appendix

TRAINING  BOOK NO 2 (SOURCE CODE COLLECTION) :
RFID 13.56MHz DEMO SOURCE CODE (PC)

  • RFID port set / UID read / Block read & write etc.

RFID 13.56MHz DEMO SOURCE CODE FOR ARDUINO

  • RFID port set / UID read / Block read & write etc.
  • LCD Control / buzzer Control / LED control
  • Data communication control

RFID 13.56MHz APPLICATION PRACTICE SOURCE CODE

  • Gate Control System
  • Public Transport Card System
  • Step-motor Control System

COMPONENTS  :
  • RFID Reader 13.56MHz(ISO15693) : 1EA
  • Tag (VICC) CARD Type : 20EA
  • Tag (VICC) Inlay Type : 10EA
  • USB2.0 Cable (With Converter) PC Interface : 1EA
  • Power Adaptor “DC 12V output, AC 220V 60Hz input” : 1EA
  • Arduino Board Arduino Mega 2560 : 1 EA
  • Power Adaptor DC 9V output, AC 220V 60Hz input : 1EA
  • Base Board “BASE BOARD(LCD + LED(R/G)” : 1EA
    – Step-motor + Buzzer
    – Dead volt (DC12V, GATE Access control) : 1EA
  • Program CD : 1EA
  • Manual book : 2 Book
ADVANTAGES :
  • Over 3EA of Tags can be simultanelosly detected depending on Tag size, which is the same performance with the commercial system.
  • The recognition speed is 100 m / s based on UID and recognition distance is 16cm.
  • Variety of contents including basic theory, operation experiments, protocols such as anticollision, application programming, etc. in manual book.
  • Easy learning of RFID commands and protocol through Host GUI program.
  • Learning basic RFID control makes it easier to implement a commercial RFID management system
    such as Libraries, gate control, public transportation card system, membership management, access control, etc.

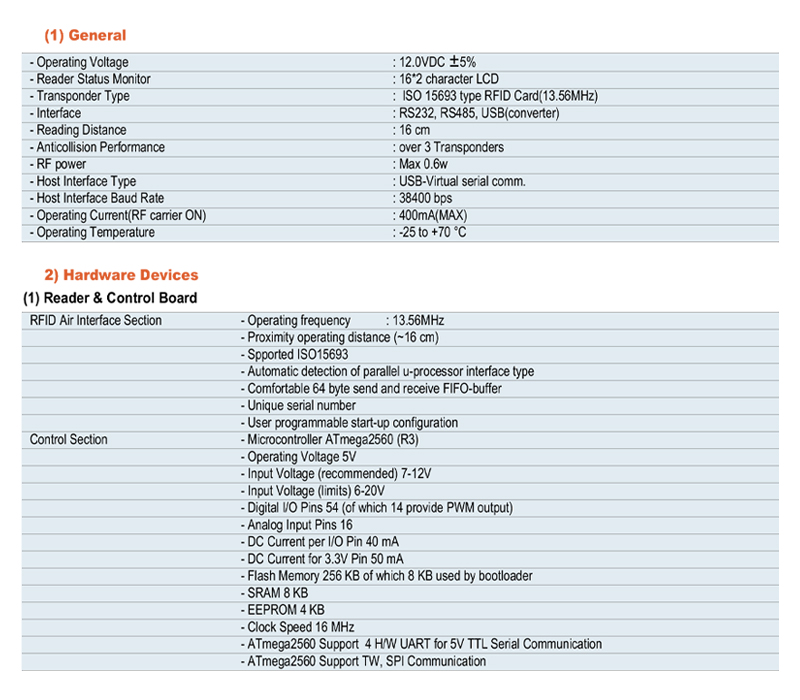

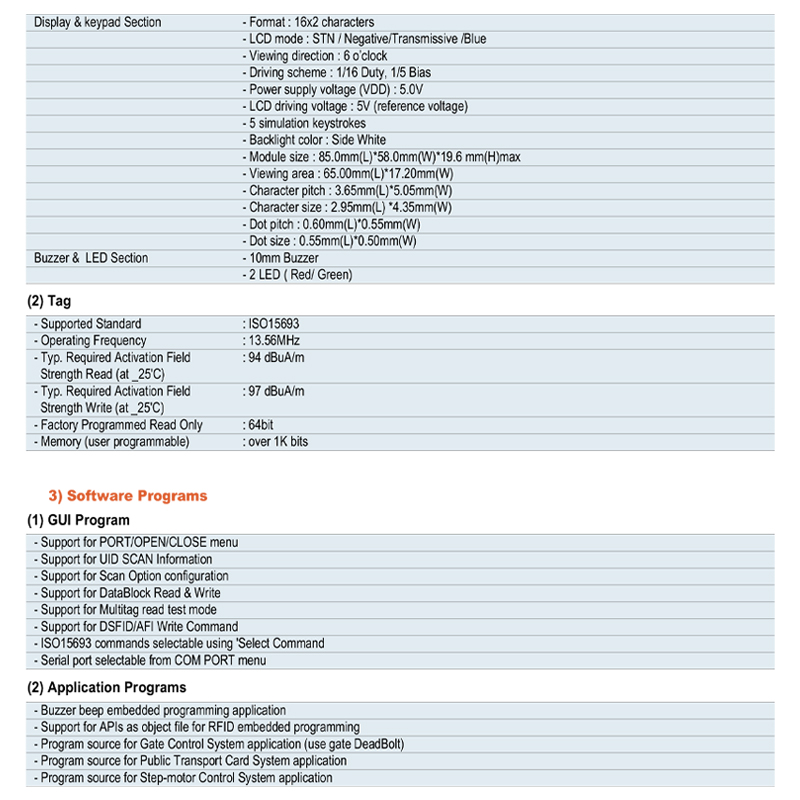

SPECIFICATION
