Unimart 4 in 1

With the PLAYMAT 4in1 Workshop, 4 fully-functional and child-friendly machines can be set up with a few simple steps – perfect for young hands!

PLAYMAT is a fully operational wood-crafting workshop developed for the youngest “Do-It-Yourselfers“. With PLAYMAT sawing, drilling and sanding is mere “child‘s play“. Creativity and technical understanding are encouraged. Thousands of enthusiastic children have produced tiny artworks in schools and during workshops and by doing so, they put the applications to the acid test.

Description

The PLAYMAT kit contains all the necessary parts for building up to 4 different, real working machines which can easily be assembled due to the well designed component pieces and easy connection system.

  • Jigsaw
  • Sanding machine
  • Drill press
  • Wood lathe
MACHINE VARIATIONS :

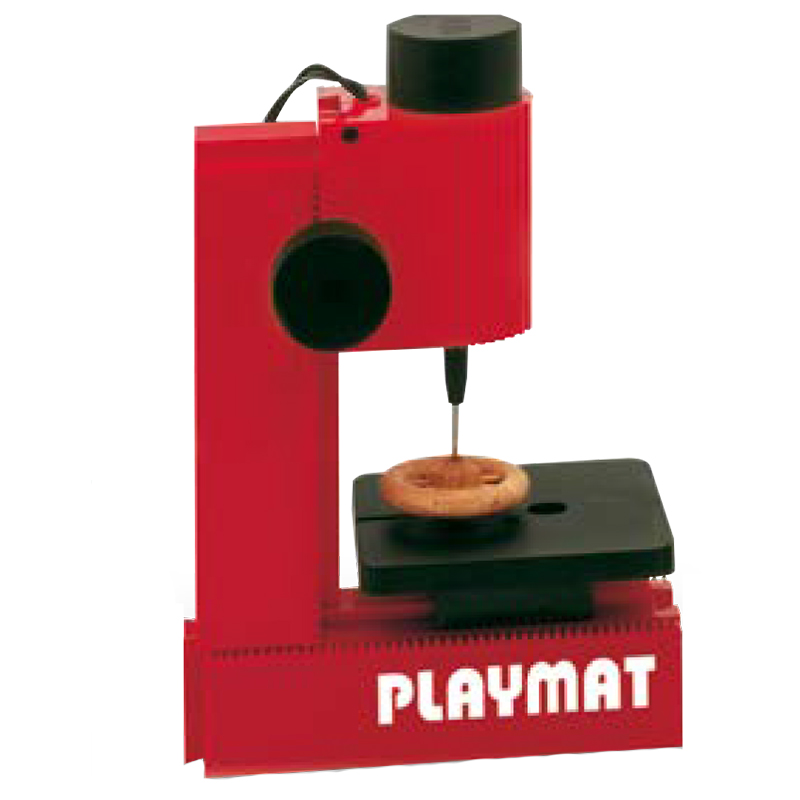

Drill press

  • Table dimensions : 90 x 90 mm.
  • Distance table surface :-
    – Drill : 0 to 36 mm
    – Throat : 36 mm

Jigsaw

  • For plywood with a thickness of up to 6 mm.
  • Table dimensions : 90 x 90 mm
  • Stroke rate : 3,700 rpm

Sanding machine

  • For sharpening tools and sanding work pieces.
  • Disk speed : 3,700 rpm
  • Disk dimension : ø 32 mm

Wood lathe

  • For softwood with a diameter of up to 30 mm
  • Distance between centers : 130 mm
  • Center height : 36 mm
  • Rotational speed : 3,700 rpm (no-load)
