Hydraulic-5000

Hydraulic-5000 is the laboratory equipment for students to learn about various application technologies as well as characteristics of hydraulic devices along with various hydraulic components. Basic hydraulic devices and various electric sensors and electrohydraulic components can be controlled by electro-hydraulic control or by hydraulic control using a PLC like in the industries.

Description

FEATURES :

Main features of Hydraulic-5000 are summarized as follows:

  • The equipment is featured by a clamping system, allowing users to freely install hydraulic modules according to the circuit drawing by simply mounting and dismounting parts on the aluminum profile test plate.
  • Circuits can be easily configured and removed in a short time as electro-hydraulic modules are connected to electric circuits using a 4Ø plug cord.
  • To enhance effect of hydraulic automation training, magnet-type symbols are provided for easy understanding of the principles and features of various hydraulic devices.
  • The textbook provides understanding from fundamentals of hydraulic theory to electro hydraulic control technologies as well as practice of circuit design.
COMPONENTS :
  • Double-acting cylinder : 2 ea
  • Single-acting 4/2 way Solenoid valve : 2 ea
  • Double-acting 4/2 way Solenoid valve : 1 ea
  • 4/3 way Solenoid valve : 1 ea
  • 4/3 way Solenoid valve : 1 ea
  • Pressure relief valve : 3 ea
  • Pressure gauge : 4 ea
  • One-way flow contol valve : 2 ea
  • Pressure compensated flow control valve : 1 ea
  • Counter balance : 1 ea
  • Pilot check valve : 1 ea
  • Check valve : 1 ea
  • Shut-off valve : 1 ea
  • T-type Dispenser (A type) : 3 ea
  • T-type Dispenser (B type) : 3 ea
  • quick couplings-hose : 1 set
  • Electric Limit Switch : 4 ea
  • Pressure switch : 1 ea
  • 3 pairs Relay unit (SK-AType) : 2 ea
  • Signal input switch unit (SK-AType) : 1 ea
  • Signal input switch unit (SK-BType) : 1 ea
  • Emergency stop switch unit : 1 ea
  • Lamp, Buzzer unit : 1 ea
  • TIME Relay unit : 1 ea
  • Digital counter unit : 1 ea
  • Electrical distribution unit : 1 ea
  • Tool box with tools / Hose Cutter : 1 set
  • Spanner, +,- Screwdriver, Tape : 1 set
  • PLC & Sequence & Hydraulic (SK-PNE) Software CD : 1 CD
  • Manual book : 1 book

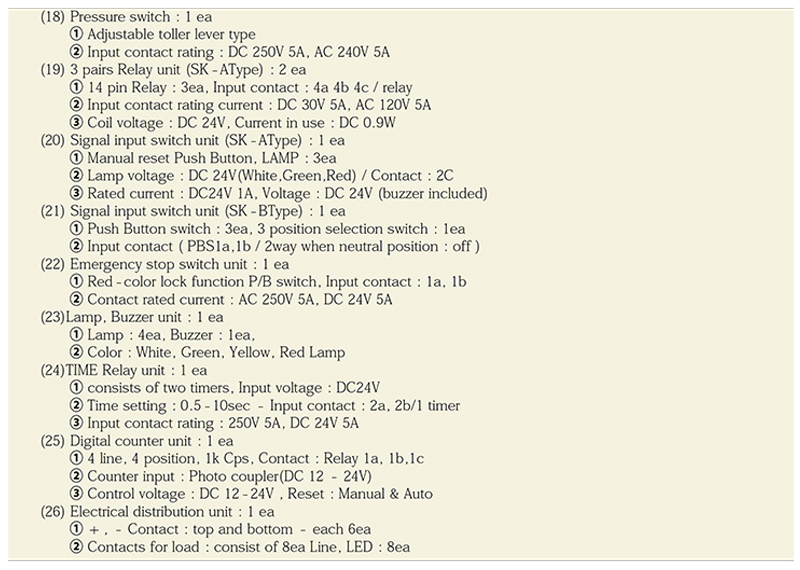

SPECIFICATION

DOCUMENTS

Hydraulic-5000
