Pneumatic control-7000

FEATURES :

PURPOSES OF EDUCATION

  • Basic principle and terminology of control engineering
  • Pneumatic working elements
  • Pneumatic direction control valve
  • Logic elements and control diagram
  • Structure and function of pneumatic components
  • Safety of pneumatic system
  • Physical basic principle of electric-pneumatics
  • Function and usage of electric-pneumatic equipment
  • Pneumatic sequence control circuit
  • Creating relay control circuit
  • PLC control of electric-pneumatic equipment

FEATURES OF EQUIPMENT

  • As it consists of a variety of electric and pneumatic parts, learners can practice application control by using pure pneumatics, electric pneumatics, relays and PLC.
  • As it has a built-in 0.5 HP air compressor that provides more than 10L surge tank capacity, additional compressed air supplying equipment is not required.
  • Working table is equipped with not only the wheels for moving and fixing but also horizontal support device and module storage drawers
  • Profile-type practice board larger than 1100(W)X700(D) is used.
  • As components can be fixed with 2 different fastening methods on the working board which is designed as profile panel, pneumatic modules can be installed as the same as displayed circuit drawing and are removeable easily.
  • Electric-pneumatic modules are connected to a circuit by 4􀋾 plug cord, and operating voltage of each module is DC 24V.
  • All the components used for pneumatic circuit are the most commercially available ones in the actual industrial field.

Description

MANUAL CONTENTS :
  • Overview
  • Equipment Installation & Maintenance
  • Introduction to Pneumatics
  • Pneumatic Source & Air Purification
  • Pneumatic Auxiliary Device
  • Pneumatic Control Device
  • Practice
COMPONENTS :
  • Compressed Air Distributor : 1
  • Air Service Unit : 1
  • Single-Acting Cylinder : 2
  • Double-Acting Cylinder : 2
  • Pressure Gauge : 2
  • Pressure Control Valve : 1
  • 3/2 Way Push Button Valve : 2
  • 3/2 Way Push Button Valve : 2
  • 3/2 Way Manual Switching Valve : 1
  • 5/2 Way Manual Switching Valve : 1
  • 3/2 Way Roller Lever Valve : 2
  • 3/2 Way Roller Lever Valve : 2
  • OR Valve : 3
  • AND Valve : 3
  • Stop Plug : 2
  • Uni-Directional Flow Control Valve : 1
  • Time Delay Valve : 1
  • 3/2 Way Solenoid Valve : 2
  • 5/2 Way Uni-Directional Solenoid Valve : 2
  • 5/2 Way Bi-Directional Solenoid Valve : 4
  • Vacuum Generator : 1
  • Limit Switch : 2
  • Photo Sensor : 1
  • Proximity Switch : 1
  • Pressure Switch : 1
  • 4/3 Manual Lever Valve : 1
  • Relay Set : 1
  • PB Switch : 2
  • Emergency Switch : 1
  • Time Relay : 1
  • Buzzer & Lamp : 1
  • Power Supply : 1
  • T-type Connector : 10
  • Connecting Lead Wire : 1 Set
  • Air Hose : 1
  • Air Hose Cutter : 1
  • Repairing Component Set : 1
  • Practice Table : 1
  • Air Compressor : 1
  • Pneumatic Control Manual : 1
  • Logic Simulation SW Program : 1 Copy

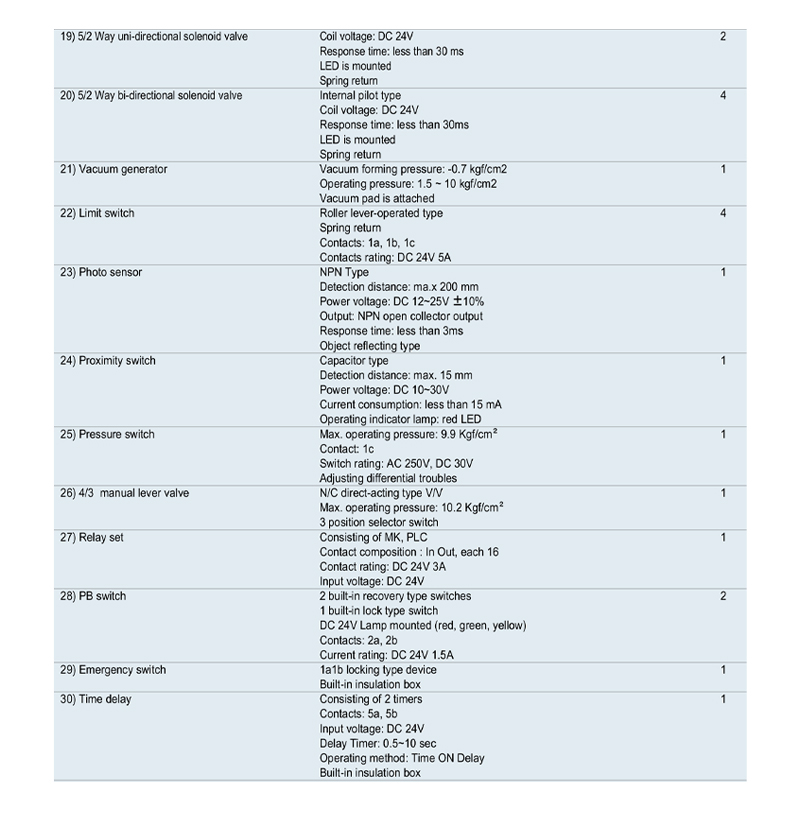

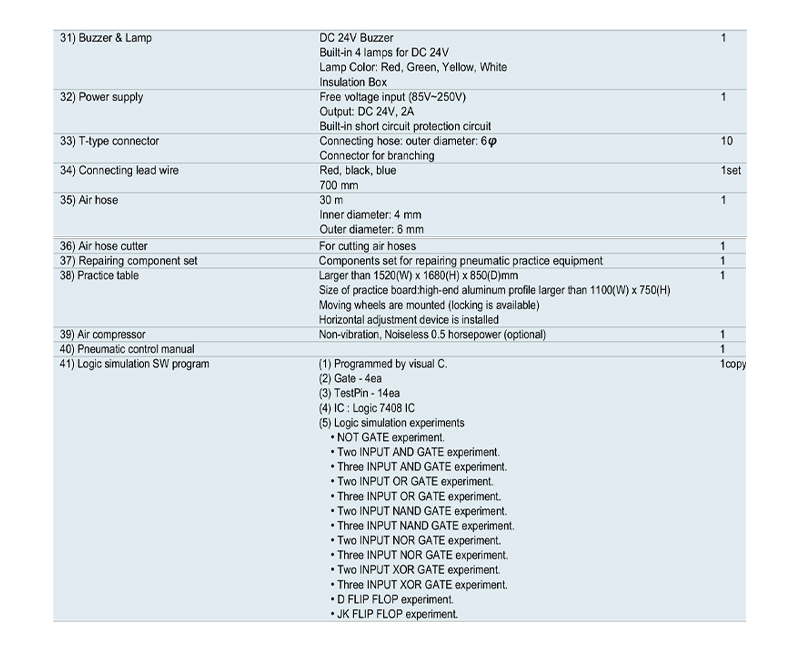

SPECIFICATION
